Nonprofit rolls out an educational greenhouse on wheels
A portable greenhouse now making the rounds in Cochrane, Alberta, shows how passive solar technology combined with phase change material can extend the region’s short growing season more efficiently than traditional greenhouses.
Funded by a Canada Healthy Communities Initiative grant, Cultivate Cochrane’s Passive Solar Roller is helping the nonprofit community group spread its vision for sustainable agriculture and locally sourced food.
Conventional “glass” greenhouses can overheat on sunny days and lose heat quickly during Alberta’s bone-chilling winter nights. Passive solar greenhouses like Cultivate Cochrane’s moderate those temperature swings, using PCMs to absorb excess heat during the day and release it at night.

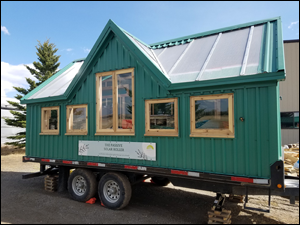

The 144-square-foot Passive Solar Roller is built on a flatbed trailer. The steep south-facing roof features polycarbonate panels that provide a balance between insulation value and light transmission. The walls and floor are well insulated to hold warmth in winter. PCM-filled Templok Tiles made by Insolcorp of North Carolina line the back wall and parts of the side walls. A small photovoltaic panel on the roof powers a fan that drives hot air into the soil beds.
Frankie-Lou Nelligan, Cultivate Cochrane’s executive director, explains more about the project:
Q: How did your team first hear of phase change materials?
A: “When our board members were first researching the possibility of building a greenhouse to assist with growing food in our challenging agricultural region, they did a great deal of reading and research about techniques and design features that could help extend our terribly short growing season here in Alberta. The idea of phase change materials was first noticed in a book called ‘Year Round Solar Greenhouse’ by Lindsey Schiller.”
Q: What can you tell me about the PCM panels?
A: “The PCM has a melting point of 77F / 25C. We bought three cases of the Templok Tile, enough to cover the back wall of the greenhouse and some portion of the side walls. The tile cost $943 Canadian, including tariffs.”
Q: Do you have any metrics on how the PCM is performing since its debut in May 2022? If no hard numbers are available, can you describe the effect in lay terms, based on your experience?
A: “Over the 17 months that the Solar Roller has been in use, we have found that the phase change material has provided an average of 2-4 degrees Celsius protection from colder temps. This is actually quite significant when you consider how much that has allowed us to extend our growing season. Here in the Cochrane region, we can often get a few sudden hard frosts as early as the last week of August. Normally this would kill off the more tender plants like tomatoes. It can be so frustrating as these frosts can be followed by several weeks of great weather. The only thing that is consistent about the growing conditions in our region is that they are so inconsistent!
“Working in conjunction with our climate battery (that circulates the air through the thermal mass of our large raised beds), the few degrees of frost protection provided by the PCM meant that we were able to grow tomatoes into the beginning of November. We were able to start growing new plants again in March. We are hoping to push the season a bit further this year. Basically with the various design features we incorporated into the Solar Roller, including PCM, we were able to grow veggies for eight months, a very significant extension.”
Q: Part of Cultivate Cochrane’s vision is to build a permanent greenhouse that will include features of the mobile greenhouse. How big will that greenhouse be, will it include PCM and when will it likely be completed?
A: “We are hoping to build a larger permanent community greenhouse within a few years, provided we can garner enough support through funding, land and labor. We are hoping this community greenhouse hub would provide inter-generational programming and education to support food sovereignty and security in our region. Ideally, this would be quite a large facility (1,500-2,000 square feet of greenhouse space).
“We are learning quite a bit about passive and active greenhouse design through our work with the Solar Roller. One thing that is very apparent is that applying several different design elements at the same time works best. Creating a great deal of thermal mass within the little greenhouse through large raised beds, a big water tank, the use of good insulation paired with PCM, orientation for best sunlight capture have all worked very well together. With the permanent nature of the larger greenhouse, we would likely use these design features again and also tap into geothermal energy as well to hopefully create a true four-season greenhouse.
“One thing that we have found particularly effective about the PCM is that it doesn’t take up a whole lot of space and is actually much lighter than other ways of building thermal mass. As the Solar Roller is quite small and also portable, the PCM has been a great space saver and makes it easier to tow.”
IN BRIEF
• The EU’s iClimaBuilt Project has announced an open call for 10 projects that can „bridge the knowledge gaps in the building sector and the Nearly Zero Energy Buildings #nZEBs concept.“ The goal is to promote the scale-up of novel materials and technologies for building envelopes. The winning proposals will receive technical support from iClimaBuilt and up to 150,000 euros in funding. Eligible entities include small and medium-size enterprises, small consortia and R&D organizations established within the EU and EEA. Applications are due by Dec. 30, 2023.
• Westinghouse Electric Co. has secured a $50 million U.S. government grant for a 1.2GWh pumped thermal project it is developing in Alaska. The company says it will be the largest energy storage facility in the United States. It is one of 15 projects getting a share of $325 million awarded by the Department of Energy as part of President Biden’s „Investing in America“ agenda.

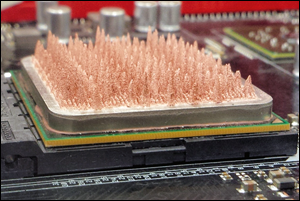

• Camila Barreneche, an associate professor at the University of Barcelona, has been working with Rocco Lupoi of Trinity College Dublin to develop „a radically new material (ThermoDust) with outstanding heat transfer performance.“ The project is funded by the European Union and the European Innovation Council.
